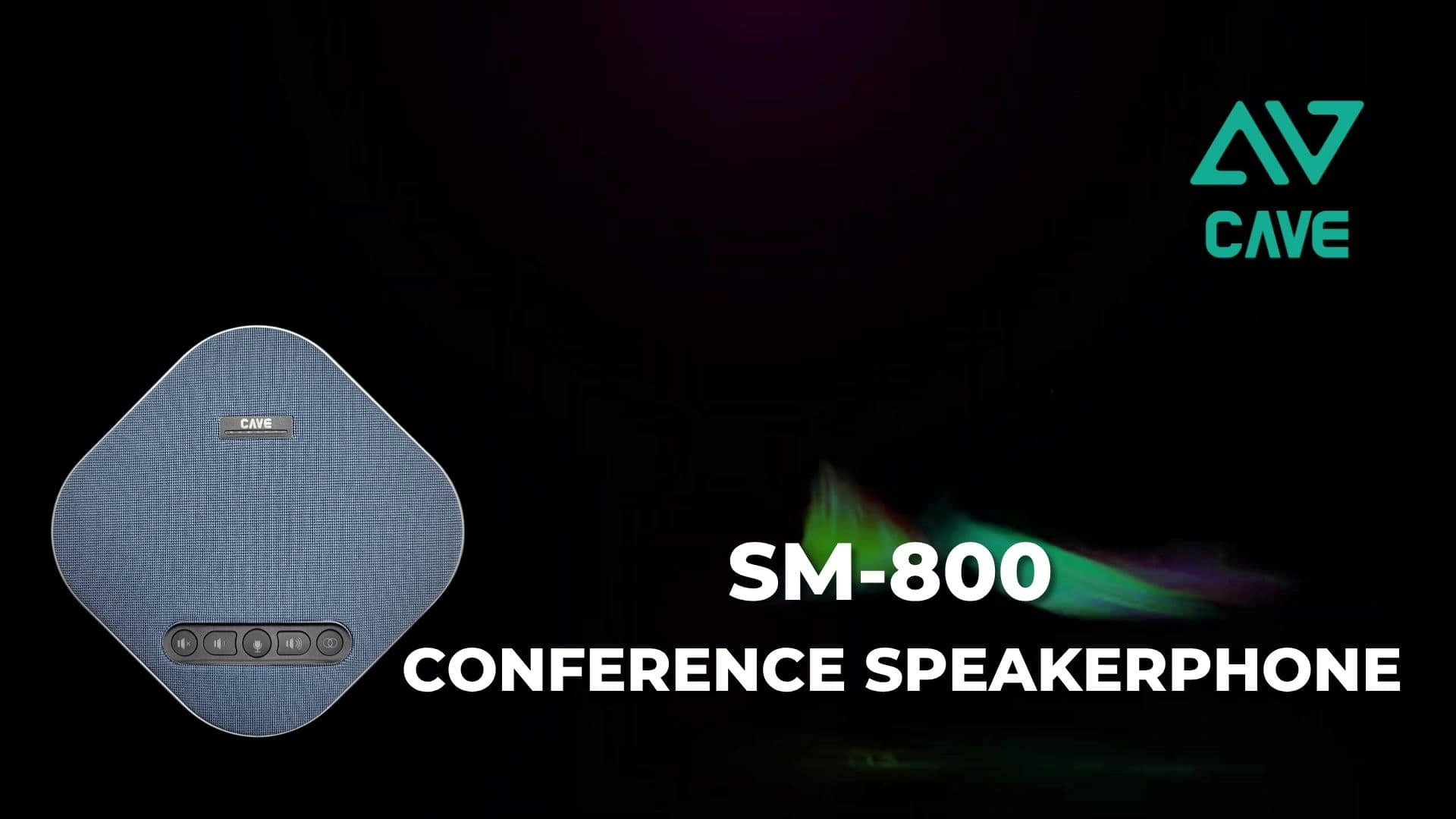

SM-800 Conference SpeakerPhone (daisy-chain speakerphone)
●Designed for Every Voice. Engineered for Every Space.

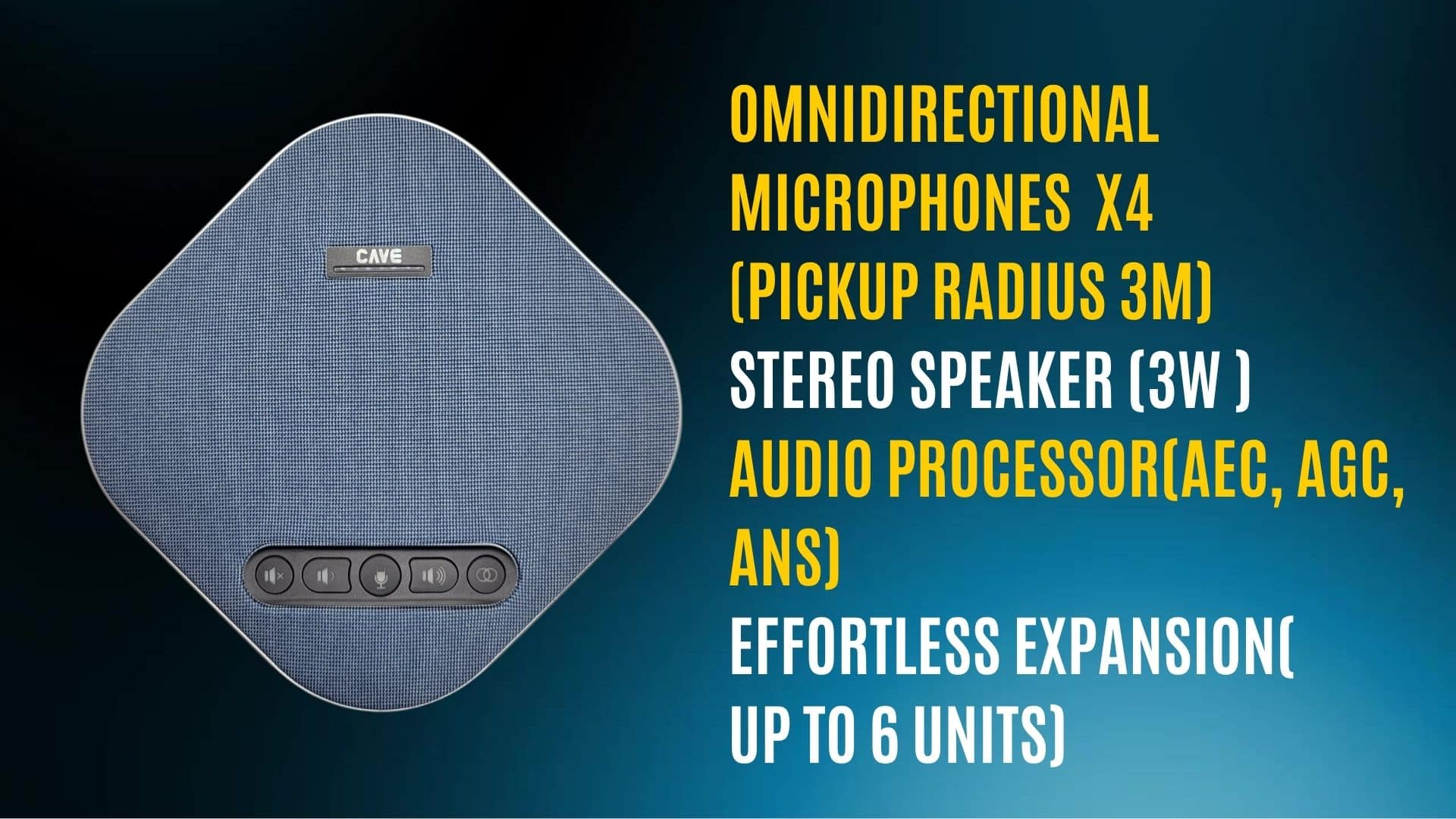

The SM-800 Conference Speakerphone is the ultimate solution for modern meeting rooms. With a sophisticated array of four omnidirectional microphones, it captures every voice within a 3-meter radius—ensuring everyone is heard, loud and clear.
●Crystal Clear Stereo Sound (3W Speaker)
Experience meetings like never before. The built-in 3W stereo speaker delivers rich, immersive audio, bringing every remote participant closer to you.
●Intelligent Audio Processing (AEC, AGC, ANS)
Powered by advanced audio technologies, SM-800 features:
ANS (Automatic Noise Suppression): Removes background noise, letting your ideas take center stage.
AEC (Acoustic Echo Cancellation): Eliminates unwanted echoes for distraction-free conversations.
AGC (Automatic Gain Control): Adjusts speaker volume automatically, so every voice is balanced.
●Effortless Connectivity. Universal Compatibility.
Connect seamlessly via USB. SM-800 supports Windows, macOS, and Android operating systems, and is fully compatible with UVC 1.5 protocol. It’s also perfect for BYOM (Bring Your Own Meeting) solutions like ClickShare CX-30/CX-50, making wireless presentations and meetings effortless.
●Scalable for Any Room (Up to 6 units)
Need more coverage? Daisy-chain up to six SM-800 units using a single PoE cable. Expand your audio reach with simple, flexible installation—no hassle, no compromise.
●Advanced Audio Synchronization
When daisy-chained, each SM-800 works in harmony. Enjoy synchronized audio processing with multi-unit echo cancellation, noise suppression, and reverberation control—delivering a seamless sound experience across the entire room.
| Model | SM-800 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Audio | ||||||||||||
| Microphone type | Omni-directional Microphone | |||||||||||
| Microphone Frequency Range | 100 Hz - 22K Hz | |||||||||||
| Microphone Signal to Noise Ratio (SNR) | 64 dB | |||||||||||
| Microphone array | 4 microphone array, 360° voice pick up to cover the entire meeting space. | |||||||||||
| Microphone Pickup range | 6 meters (Radius 3 meters) | |||||||||||
| Speaker Output Power | 3W | |||||||||||
| Speaker Frequency Range | 150 Hz - 20K Hz | |||||||||||
| Advanced Audio Features | HD Audio, Full Range Speaker | |||||||||||
| Advanced Audio Processing | Echo cancellation, Noise suppression, Gain control, Expansion (Up to 6 devices) | |||||||||||
| USB | ||||||||||||
| Operation System | Windows (7 and above), macOS™ 10.10 or higher | |||||||||||
| USB Audio Protocol | UAC 2.0 | |||||||||||
| Interface | ||||||||||||
| USB | Input: 1x USB 3.0 Type-C port (with 2.0 compatibility) | |||||||||||
| RJ-45 | LINK In/Out | |||||||||||
| Power | DC 12V | |||||||||||
| General Specification | ||||||||||||
| Dimension (LxWxH) | 150mm * 150mm * 36mm | |||||||||||
| Weight | 0.8 Kg | |||||||||||
| Temperature Range | Working Temp.: 0°C ~ 40°C Storage Temp.: -40°C ~ 60°C | |||||||||||
| Packages | ||||||||||||
| Accessories | SM-800 SpeakerPhone, Quick Guide, Warranty Card | |||||||||||
