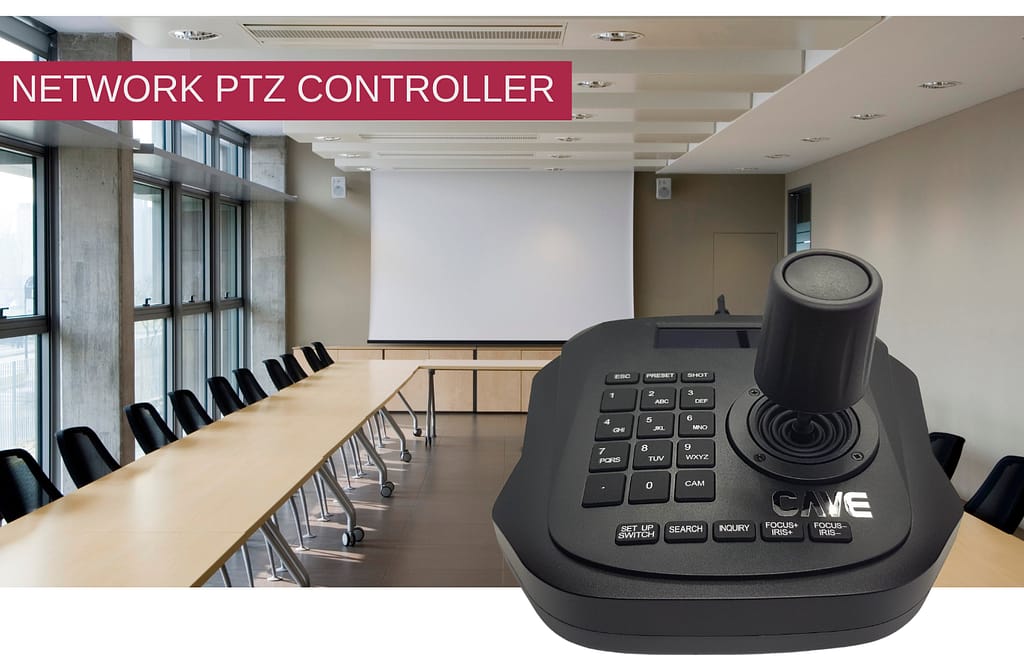

CAVE-TEK Image K10 PTZ Controller

# PTZ Camera Control # ONVIF # Network #CAVE Camera

K10 Web

Highlight

4D joystick

Control the pan, tilt, zoom on the PTZ camera instantly.

Easy network connection

You can control any CAVE PTZ Camera at your location by using RJ45 cable.

ONVIF protocol and auto-discovery

It uses ONVIF to connect cameras easily and support auto-discovery.

Supports up to 6 PTZ cameras

You can connect up to 6 PTZ cameras simultaneously with this controller.

10 preset positions

You can easily setup 10 preset positions and make them move around to any area you want.

Web-based setup page

With built-in web-based setup page, you can have the completely control easily.

ModelK10
PTZ Camera Control
PTZ ProtocolONVIF 2.4
Joystick4D Joystick
Button20 Buttons
LCD Display56 * 16 mm
No. of control camera6
System setupOSD, Web Setup Page (IE, Chrome, Safari etc..)
Interface
Network Interface1xRJ-45 Ethernet (10M/100M)
PowerDC IN 12V / 2A
General specification
Input VoltageDC 12V
Power Consumption0.6 W (Max)
Temperature RangeOperating: 0°C ~ 50°C
Storage: -10°C ~ 60°C
Dimension (WxDxH)158mm x 150mm x 107mm
Weight0.5 Kg
Warranty1 year (Limited Hardware)
Inside the box
PackageKeyboard Controller, Power Adaptor, Quick Start Guide, Warranty Card
