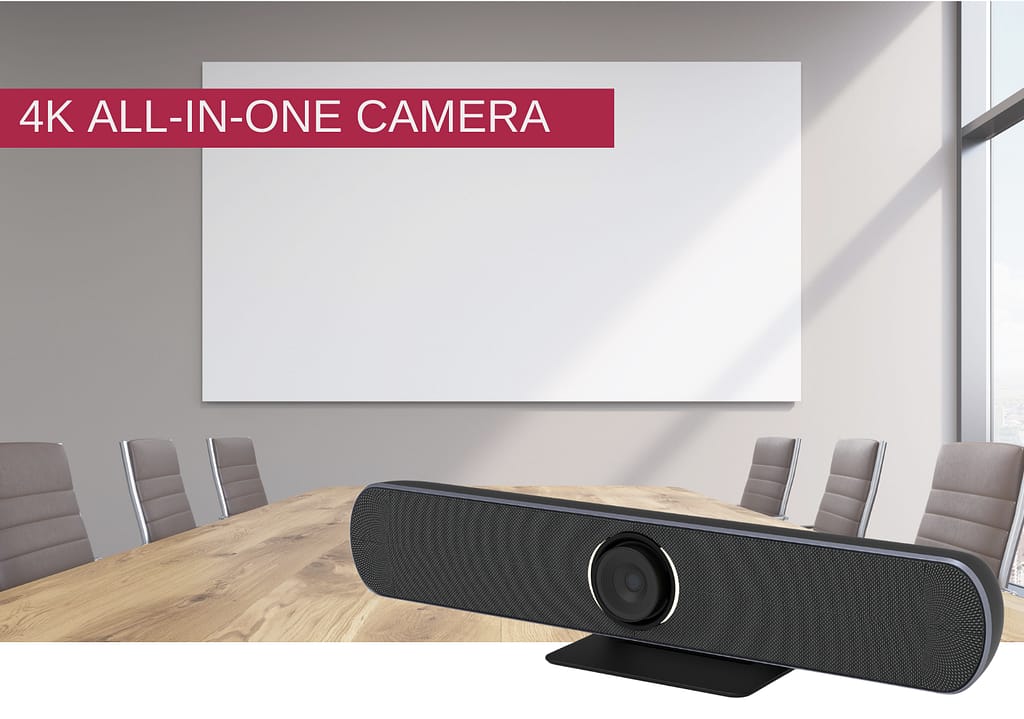

SP 1100 WEB1

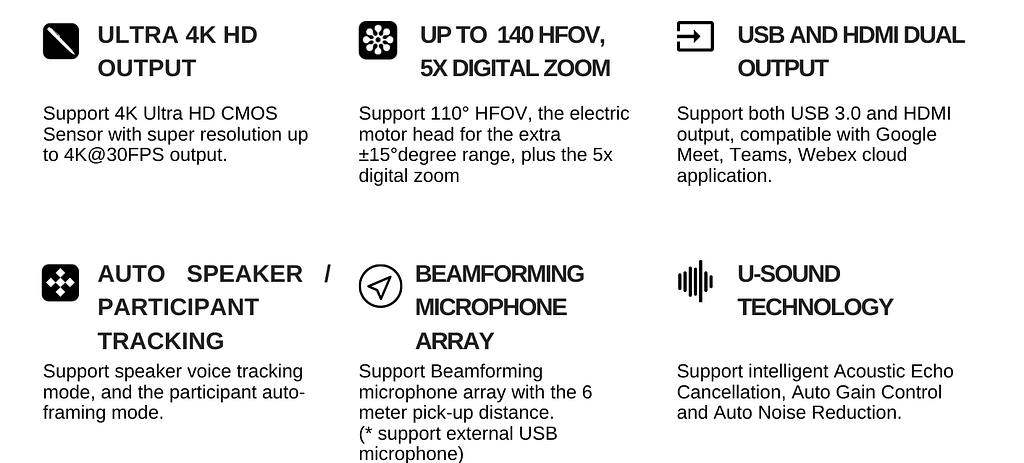

SP 1100 WEB2

# 4K # AIO Conference Camera # Speaker Tracking # HDMI, USB Output


4K Ultra HD

Using 1/2.5 inch, 8.51M pixel high quality UHD CMOS sensor, 4K (3840×2160) @p60fps ultra high resolution clear image, and downward compatible with 1080P, 720P and other resolutions.

All-in-one design

The three-in-one design of 4K ultra HD camera, beamforming microphone and full-frequency loudspeaker reduces wiring and makes video communication easy.

Wide View angle

121°wide field of view (110° horizontal field of view), 5 times zoom, optical lens customized for the conference scene, built-in electric head (horizontal and pitch ±15° motion range).

Beamforming microphone

4 Beamforming (BF) microphone is built in, with a pickup distance of 6 meters. Low-distortion transverse beamforming algorithm can direct the microphone directly to the speaker, with better sound quality.

Intelligent Speaker Tracking

Built-in intelligent analysis algorithm, listening to the speaker position, automatic framing of participants, automatic tracking of speakers, switching the speaker screen, to ensure that the speaker is always clearly in the picture.

SP 1100 Promo detail EN

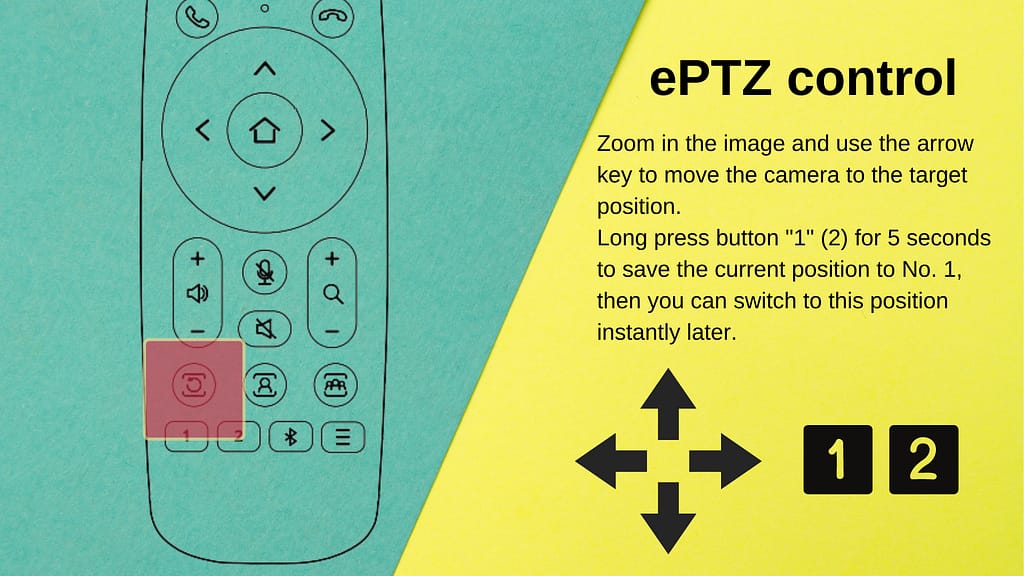

Manual SP1100EN

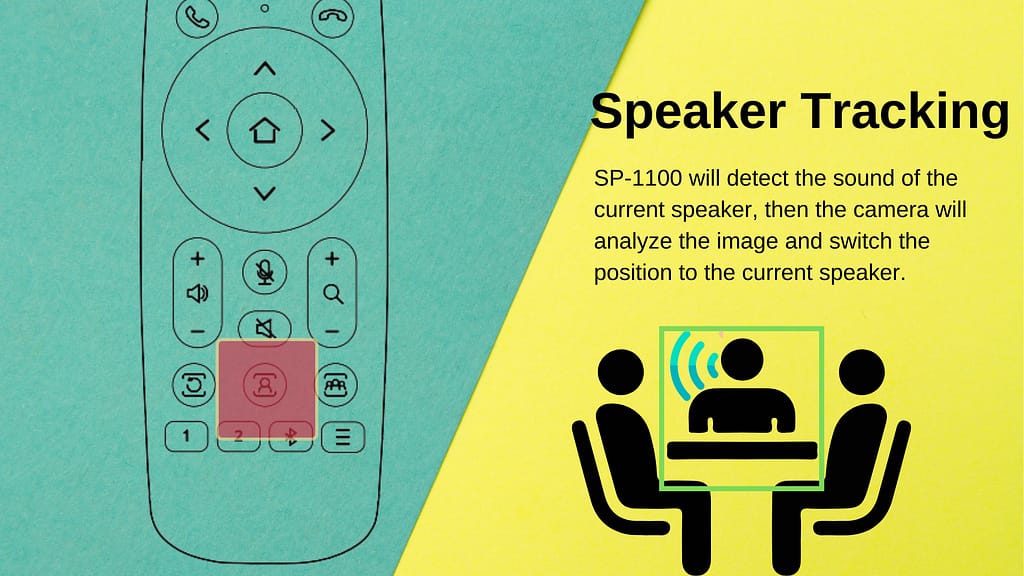

Auto Tracking SP1100EN

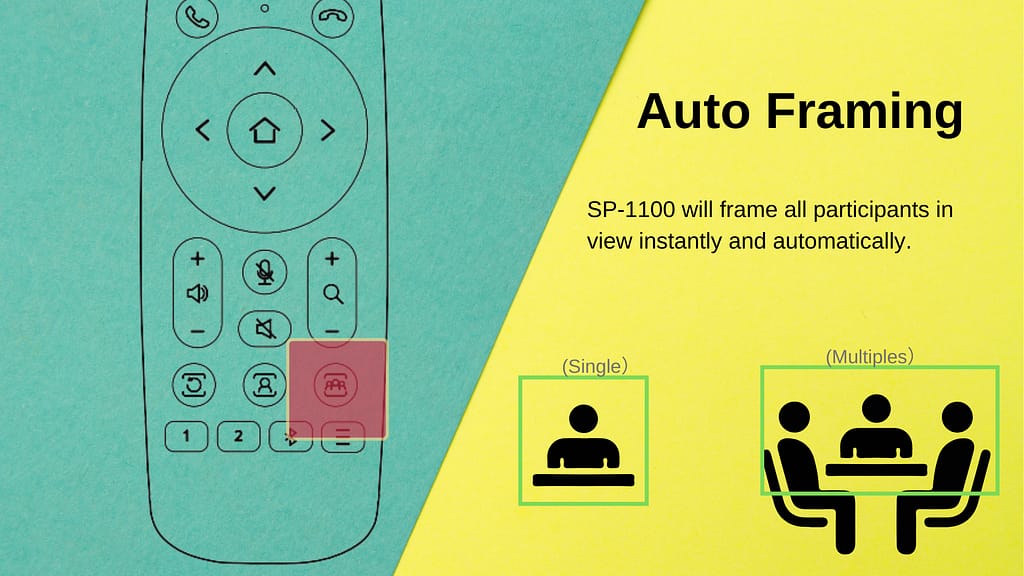

Auto Framing SP1100EN

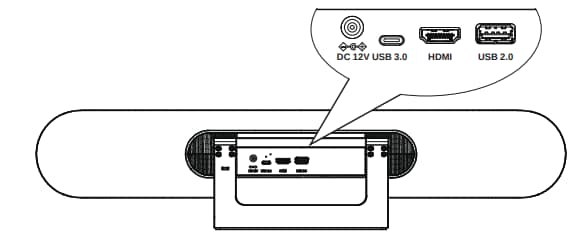

SP1100 IO Full
Video System4K@30fps, 1080P@60/30fps, 720P@60/30fps
Image Sensor1/2.5 inch , Low Noise CMOS Image Sensor
Lens characteristics (wide to tele)121° (DFOV) , 110° (HFOV) , 5x digital zoom, pan/tilt ±15°
Video S/N55dB
Advanced camera processingBacklight Compensation, 2D&3D Digital Noise Reduction
Pan, Tilt, ZoomMPT + EPTZ
Auto TrackingSpeaker mode (Voice Tracking), Participant mode
Audio Feature
Speaker0.5 meter 96 dB SPL
Max Output:8W
MicrophoneMicrophone array:Beamforming microphone array x 4
Pick-up Distance:6 meter
USB Audio32K sampling rate, support UAC2.0
Advanced audio processingU-Sound Technology, Echo Cancellation (AEC), Auto Gain Control (AGC), Noise Reduction (ANR), Full duplex Speakerphone
Extended MicrophoneSupport external USB microphone (optional)
USB Feature
Operation SystemWindows® 7, Windows 8.1, Windows 10 or higher
macOS™ 10.10 or higher
Color System / CompressionH.264 / MJPEG /YUY2 /NV12
USB Video Communication ProtocolUVC 1.1~1.5
Video Output1xHDMI (Version 1.4) (*Video Only)
USB Interface1 * USB3.0, Type C ;
1 * USB2.0, Type A ;
Power JackJEITA Type (DC IN 12V)
General specification
Input VoltageDC 12V/2A
Power Consumption24W (max)
Temperature RangeOperating: 0°C ~ 40°C
Storage: -40°C ~ 60°C
Dimension (WxDxH)600mm * 140mm * 115mm (holder included)
Inside the box
PackageCamera, Power Adaptor, Remote Control, USB Cable, Mount Kit, Quick Start Guide, Warranty Card
